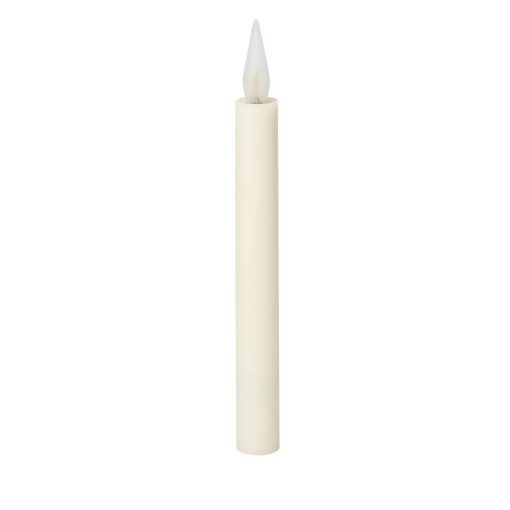

The E-candle Royal was specially developed for historical buildings. It closely resembles the warm glow of candlelight.Candle hardly distinguishable from real candles
– Hand-blown flame bulb
– Light hue: 2200 K warm white
– Burning hours: 50,000
– Dimmable: 0-100%
3 volts VDC 3 Volts Direct Current, 3 volts direct current.
The LEDs in the candles are connected in a series. A maximum of 12 candles can be connected in a series. If a chandelier has more candles than that, multiple groups of 12 have to be made. The power supply for the LEDs comes from the included “driver”. This driver may be mounted at a distance of 50 metres from the chandelier. The wiring to the candles must be suitable for 350mA. The whole chandelier works on a safe voltage of less than 42 volts. The candles are dimmable.
VAC: 12 volts AC voltage: 12 volts
The LEDs are parallel. The candle’s power supply is 12 volts. The number of lights that can be connected in parallel is 40 for a 50va transformer. The wiring in the chandelier is parallel. In many cases, the existing wiring can be reused. The 12-volt LED has 90 lumens of light with a colour temperature of 2200K and a CRI of over 95
VAC: 230 volts AC voltage: 230 volts
The LEDs are parallel. The candle’s power supply is 230 volts. The number of lights that can be connected in parallel is unlimited. The LED driver is mounted in the candle. The wiring in the chandelier must meet the requirements for the NEN 1010 norm. If the wiring in the chandelier has to be replaced due to an unsafe situation, it would be better to switch to the safe 3-volt version or 12-volt version.
115 mm, 170 mm, 230 mm
|Flame glass finish||
230 VAC, 3VDC
